Domestic Hot Water Heat Pump (10 bar) WPA 450 ECO 450 Litre

Domestic Hot Water Heat Pump (10 bar) WPA 450 ECO 450 Litre

Giá: Liên hệ

Working range (-7 °C to +35 °C)
No heat transfer losses between heat pump and storage tank
Tried and tested technology, easy to install, easy to integrate into all systems
No electrical and refrigeration connection work required
Wide range of operating options (heating via heat pump or boiler)
Enables cooling in addition to hot water production, the cooling of a room
Also designed for multivalent operation designed

Liên hệ đặt hàng

* Liên hệ đặt hàng để nhận được ưu đãi từ chúng tôi

Cam kết
hàng nhập khẩu

Cam kết bảo hành, kiểm tra trong vòng 24 giờ sau khi nhận được thông báo.

100% hàng chính hãng

Giao hàng
toàn quốc

Thanh toán linh hoạt qua ứng dụng

Thông tin sản phẩm

According to experts

Working range (-7 °C to +35 °C)
No heat transfer losses between heat pump and storage tank
Tried and tested technology, easy to install, easy to integrate into all systems
No electrical and refrigeration connection work required
Wide range of operating options (heating via heat pump or boiler)
Enables cooling in addition to hot water production, the cooling of a room
Also designed for multivalent operation designed

Drinking water heat pump

Operating pressure: 10 bar
Capacity: 450 L
High-quality PU foam insulation
With potential-free switching input for photovoltaic system
Extremely energy-saving operation
With 2 connection pipes ø 250 mm on the side (supplyair and n extract air)
The unit is of compact design and ready to plug in
Operating range (-7 °C to +35 °C)
Corrosion protection due to high-quality enamelling
According to DIN 4753
No heat transfer losses between heat pump and storage tank
Magnesium anode
Tried and tested technology, easy to install, easy to integrate in all systems
Wide range of operating options (heating via heat pump orboiler)

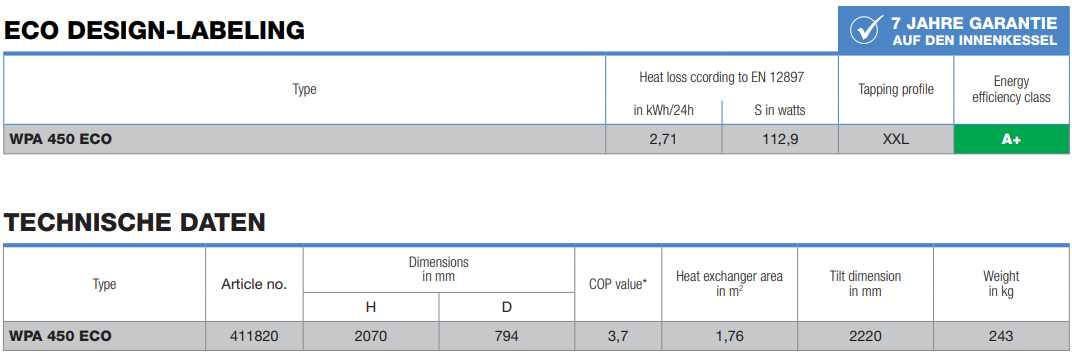

TECHNICAL DATA

Heat output heat pump 3.830 W / 7.830 W²
Power consumption heat pump 980 W / 4.980²
Electric heater 2x 2.000 W
COP 3,9¹
Voltage / frequency 230V / 50 Hz400V / 50 Hz
Electrical fuse protection 16 A / 25 A / 3x16A
Refrigerant / filling mass R 134 A / 1,1 kg
Operating range heat pump -7 °C + 35 °C
Maximum water temperature 55 °C (65 °C)³
Legionella protection ~ 60 °C

Necessary air flow rate 800 m³/h
Lower coil heating surface 1,76 m²
Storage tank protection Magnesium anode
Thermal insulation 50 mm PU
Air duct connection 250 mm / max. 25 m
Water connection 1“
Dimensions (HxD) 2.070×794 mm
Minimum room height 2.500 mm
Sound power 60 dB(A) 4
Sound pressure – 1m 49 dB(A)

1 … according to EN 16147 – air temperature 20 °C, water heating 10 °C to 55 °C, relative humidity 70 %.
2 … with electric heating
3 … with electric heating (heat pump operation up to max. 60 °C)
4 … Distance 1m without air ducts

Sfsdfdgf
